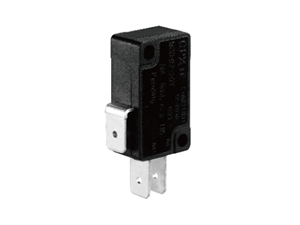

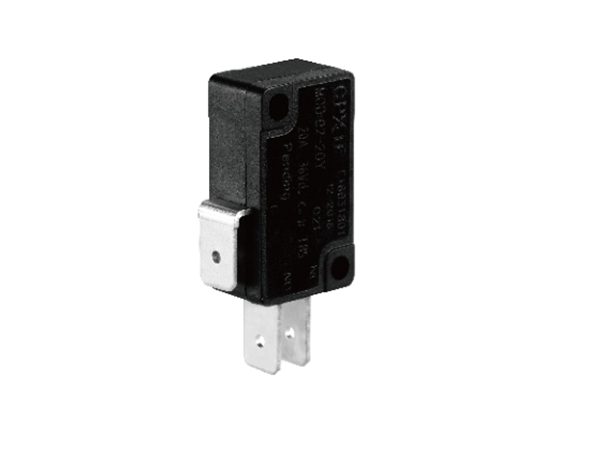

MODEL:02
Function:
Micro switch compact structure with a very short contact time
Short travel distance; small operation force
High sensitivity snap action the ON/OFF switch
Features:
Contact gap ﹤3mm or ≥3mm
Wide range of operation force from 0.2-5N
Can meet the 105℃ environmental requirements
Customized lever options
Dustproof IP60
Type of terminals:
Various quick push-in terminals
PCB terminals
Solder terminals
Applications:
·”Widely used in home appliances, power tools, electronic equipment, antomation equipment, communication equipment, auto-mo-tive electronics, instrumentation and other fields”
Circuit Diagram
Approvals
Switch Base Shape
Terminal type

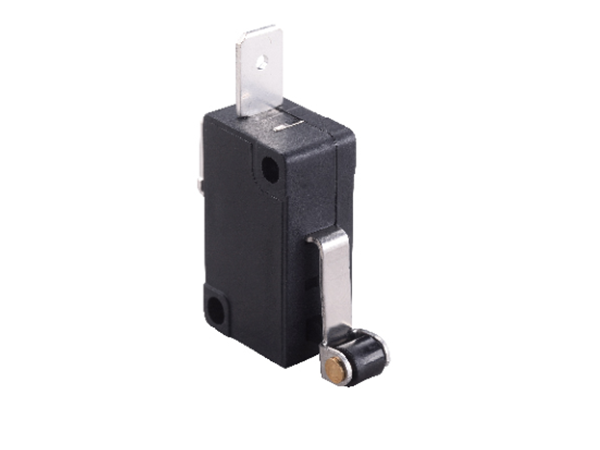

Lever form Button form
