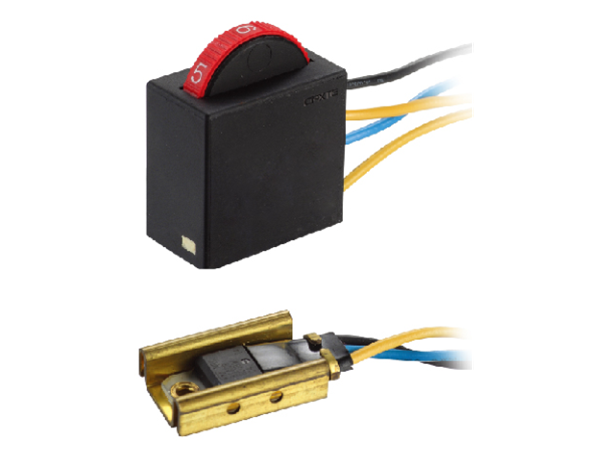

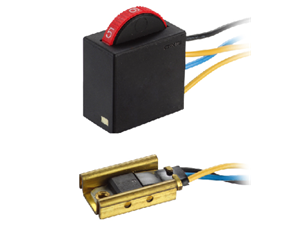

Dial 07 AC variable speed switches

MODEL:07

Function:

Dial speed control electronics with mechanical bypass contact.

Used in combination with separate ON/OFF switch.

Half wave or full wave speed control.

Pronounced ratchet function.

Optional:

External power device for increased perfor- mance.

Low cost, low duty version available with integrated electronics and bypass for small tools.

High power version with external power device and electronic bypass.

Terminals:

Push-in connectors.

External screw terminal block.

Applications:

ClassⅡappliances, Intended to be used in combination with a separate On/Off switch, such as Jigsaw, Sander, Polisher, Angle grinder.

Circuit Diagram

Approvals：

Switch Base Shape
