PAC 55 AC variable speed switches

AC SWITCHES

PAC 55 AC variable speed switches
General Characteristics
Applications
Circuit Diagram&Approvals
Basic Shape

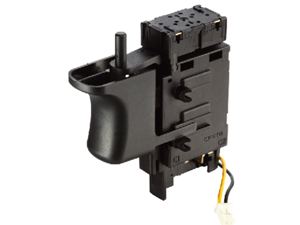

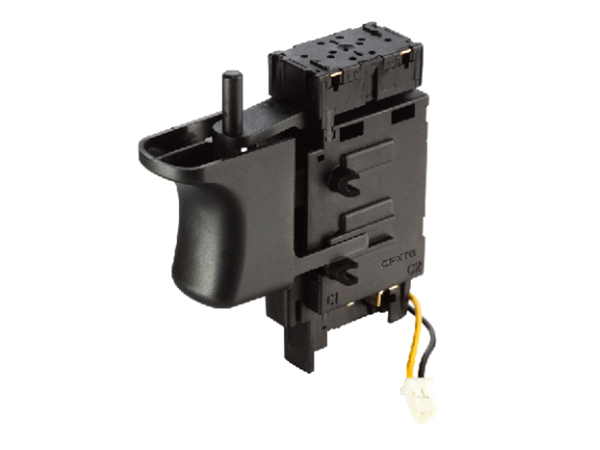

MODEL:55

Function:

Single pole switch with halfwave or fullwave electronics and bypass contact.

Available as potentiometer and on/off version.



Optional:

Fullwave Triac speed control with or without bypass.

Semi-external or full-external mounted power component with heatsink for higher loads through the electronics.

Two quick-disconnect terminals for supply cord, according to ENEC certification.

Push-in terminals for connection of internal wiring.

Lockbutton available as bottom-lock at the Triggerhead.

Optional: Adjusting mechanism

Optional: Reversing module.

Optional: Integrated interference suppression Capacitor.

Applications:

Class Ⅱ appliances, such as medium and high power Drill, Jigsaw, Sander, Polisher, Circular Saw, Reciprocating saw.

Circuit Diagram

Approvals

Switch Base Shape
