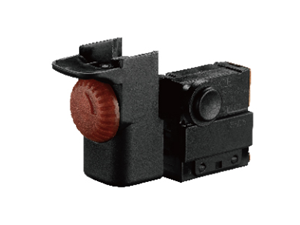

Drill Switches for Power Tool

Drill Switches

Drill Switches for Power Tool
General Characteristics
Applications
Circuit Diagram&Approvals
Basic Shape

MODEL:47

Function:

Single pole switch with halfwave or fullwave speed control electronics and bypass contact.

Also available as On/Off switch.

Optional:

Lock button, various shapes and dimensions available.

Reversing module with zero current switching rotation mode.

Jumper wires between reversing module and main switch.

Potentiometer.

External power component and heatsink for higher loads.

Adjustable knob, various shapes and dimensions available.

Various shapes and dimensions of trigger head and reversing lever.



Terminals:

Push-in terminals.

Applications:

Classâ…ˇappliances, such as Drill, Jigsaw, Sander, Polisher, Circular Saw, Reciprocating saw.

Cricuit Diagram

Approvals

Switch Base Shape

Triggerhead Options        Lockbutton Options    Lever Options
